The WM5000 and WM9000 washing machines feature LG’s smart home technology, allowing users to connect the appliances to the Internet for convenient remote control. Through a mobile app, users can start or stop wash cycles, monitor progress, and receive notifications when the cycle is complete. In addition, the built-in remote diagnostics function enables service centers to connect to the washer if necessary and quickly identify potential issues.

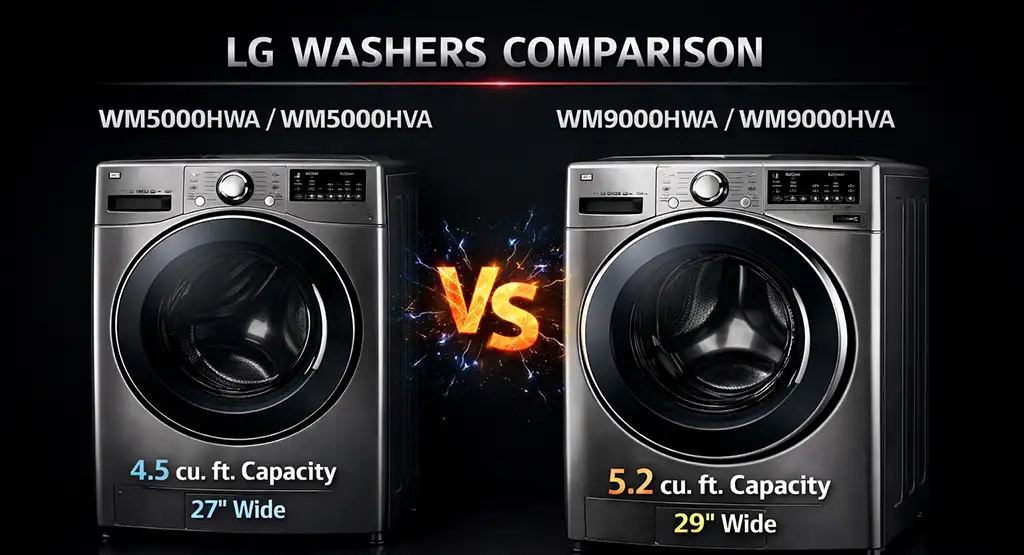

Size and Capacity Differences
The main difference between the two models lies in their dimensions and drum capacity. The WM5000 measures 27″ × 38 13/16″ × 32 13/16″ and offers a capacity of 4.5 cu. ft. In contrast, the larger WM9000 measures 29″ × 41 1/4″ × 33 3/4″ and provides an increased capacity of 5.2 cu. ft. This larger drum allows the WM9000 to handle bigger laundry loads in a single cycle, making it more suitable for large households or bulky items such as bedding and towels.
Performance, Features, and Efficiency
Both washing machines offer nearly identical functionality. They include 14 wash programs, such as Cotton/Normal, Delicates, Speed Wash, Sportswear, Bedding, Sanitary, and Allergiene™ cycles. Available options include Prewash, Extra Rinse, Steam, TurboWash™, ColdWash™, and customizable programs. Each model supports multiple temperature settings from Tap Cold to Extra Hot and provides spin speeds up to 1,300 RPM.
The washers are equipped with an Inverter Direct Drive motor, automatic load sensing, soil level adjustment, anti-vibration technology for quiet operation, and a durable stainless-steel drum. Wi-Fi features include energy monitoring, remote start, Smart Grid compatibility, and downloadable cycles ⚡.
In terms of energy performance, the WM9000 has a higher CEE Tier 3 efficiency rating, while the WM5000 is rated CEE Tier 2. This means the WM9000 can use less water and energy relative to its load size. Otherwise, both models share the same electrical requirements (120 V, 10 A), similar accessory options, and identical warranty coverage — 1 year for parts and labor, 10 years for the motor, and a lifetime warranty on the drum 🛡️.
Comparison table of washing machines WM 5000 vs WM9000
| WM5000HW(V)A | WM9000HW(V)A | |
| CAPACITY | ||
| Capacity | 4.5 cu. ft. | 5.2 cu. ft. |
| APPEARANCE | ||
| Design Look | Front Control | Front Control |
| On-Door Electronic Control Panel with LED Display | + | + |
| Touch Buttons | + | + |
| Dial-A-Cycle™ | + | + |
| ENERGY | ||
| 2015 ENERGY STAR® Most Efficient | + | + |
| CEE Tier | 2 | 3 |
| WASH PROGRAMS | ||
| No. of Programs | 14 | 14 |
| Wash Programs | Cotton/Normal, Perm. Press/Casual, Delicates, Speed Wash, TubClean™, Sanitary, Allergiene™, Heavy Duty, BrightWhites™, Towels, Rinse+Spin, Download, Sportswear, Bedding | Cotton/Normal, Perm. Press/Casual, Delicates, Speed Wash, TubClean™, Sanitary, Allergiene™, Heavy Duty, BrightWhites™, Towels, Rinse+Spin, Download, Sportswear, Bedding |
| No. of Options | 12 | 12 |
| Options | Prewash, Delay Wash, Extra Rinse, Child Lock, ColdWash™, FreshCare™, Steam, TurboWash™, Custom Program, Drum Light, Smart Grid, Remote Start | Prewash, Delay Wash, Extra Rinse, Child Lock, ColdWash™, FreshCare™, Steam, TurboWash™, Custom Program, Drum Light, Smart Grid, Remote Start |
| No. of Wash/Rinse Temps | 5 Extra Hot, Hot, Warm, Cold, Tap Cold (All Cold Rinses) | 5 Extra Hot, Hot, Warm, Cold, Tap Cold (All Cold Rinses) |
| Spin Speeds | Extra High (1,300 max.), High, Medium, Low, No Spin | Extra High (1,300 max.), High, Medium, Low, No Spin |
| No. of Water Levels | Automatically adjusts to the size of load | Automatically adjusts to the size of load |
| No. of Soil Levels | 5 | 5 |
| FABRIC CARE FEATURES | ||
| TurboWash® 2.0 Technology | + | + |
| Steam Technology | + | + |
| Allergiene™ Cycle | + | + |
| Sanitary Cycle | + | + |
| ColdWash™ Option | + | + |
| SenseClean™ System | + | + |
| CONVENIENCE FEATURES | ||
| TrueBalance™ Anti-Vibration System | + | + |
| 4 Tray Dispenser | Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener | Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener |
| LoDecibel™ Quiet Operation | + | + |
| End of Cycle Signal | + | + |
| LoadSense | + | + |
| Child Lock | + | + |
| Auto Suds Removal | + | + |
| Forced Drain System | + | + |
| Leveling Legs | 4 Adjustable Legs | 4 Adjustable Legs |
| SmartDiagnosis™ | • (v 3.0) | • (v 3.0) |
| Smart ThinQ™ (Wi-Fi) | Smart Grid Ready, Smart Access, Smart Adapt, Energy Monitoring, Laundry Starts | Smart Grid Ready, Smart Access, Smart Adapt, Energy Monitoring, Laundry Starts |
| NFC Tag On | + | + |
| MOTOR AND AGITATOR | ||
| Motor Type | Inverter Direct Drive Motor | Inverter Direct Drive Motor |
| Motor Speed | Variable | Variable |
| Max RPM | 1,300 | 1,300 |
| Axis | Horizontal | Horizontal |
| MATERIALS AND FINISHES | ||
| NeveRust™ Stainless Steel Drum | + | + |
| Cabinet | PCM | PCM |
| Control Panel | Plastic | Plastic |
| Top Plate | Painted | Painted |
| Door Rim | Glass/Chrome | Glass/Chrome |
| Door Cover | Dark Black Tinted Square Cover | Dark Black Tinted Square Cover |
| Door Opening | 40 1/2″ | 42 1/8″ |
| Available Colors | White (W), Graphite Steel (V) | White (W), Graphite Steel (V) |
| POWER SOURCE | ||
| Ratings | UL Listed | UL Listed |
| Electrical Requirements | 120V, 10 Amps | 120V, 10 Amps |
| Type | Electric | Electric |
| OPTIONS | ||
| Pedestal | WDP4W, WDP4V | WDP5W, WDP5V |
| Pedestal (WxHxD) | 27″ x 13 3/5″ x 28 2/5″ | 29″ x 14 1/10″ x 30 4/5″ |
| Sidekick™ Pedestal Washer | WD100CW, WD100CV | WD200CW, WD200CV |
| Sidekick™ Pedestal Washer (WxHxD) | 27″ x 14 1/10″ x 30 4/5″ | 29″ x 14 1/10″ x 30 4/5″ |
| Stacking Kit | – | KSTK2 |
| DIMENSIONS | ||
| Product (WxHxD) | 27″ x 38 13/16″ x 32 13/16″ (55″ D with door open) | 29″ x 41 1/4″ x 33 3/4″ (55 15/16″ W with door open) |
| Carton (WxHxD) | 29 7/32″ x 42 3/8″ x 33 7/32″ | Carton (WxHxD) 31 3/10″ x 44 2/3″ x 36 6/10″ |
| Weight (Product/Carton) | 210.0 lbs / 233.7 lbs | 227.1 lbs / 233.7 lbs |
| LIMITED WARRANTY | ||
| 1 Year Parts and Labor, 10 Years Motor, Lifetime on Drum | 1 Year Parts and Labor, 10 Years Motor, Lifetime on Drum |
